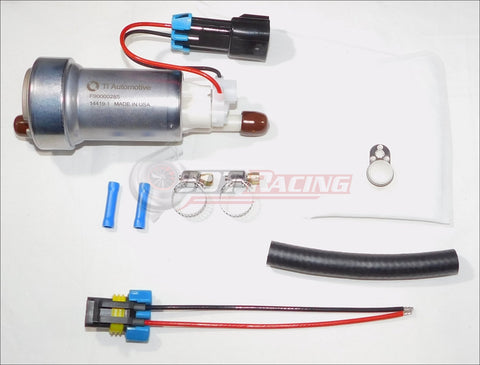

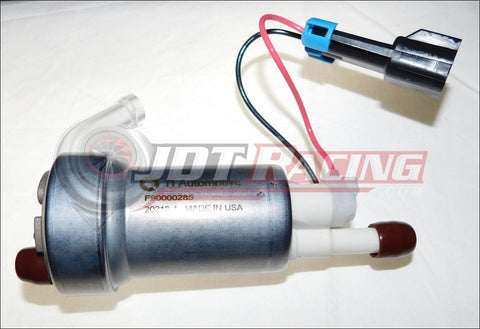

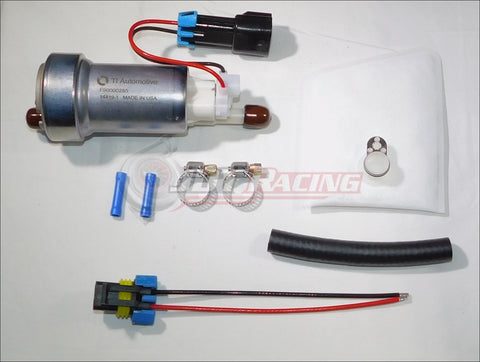

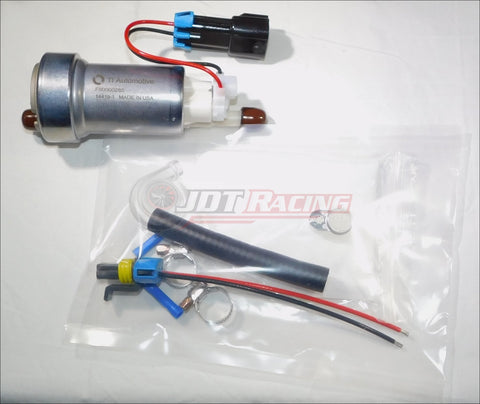

Brand new Genuine Walbro 525 LPH High Pressure In-Tank Fuel Pump F90000285 complete with Installation kit.
* (1) Walbro F90000285 525lph High Pressure Fuel Pump
* (1) Installation Kit (#400-0085)
Walbro F90000285 525LPH pump is the highest flowing intank fuel pump on the market, and is E85 safe to boot. Walbro designed the pump to meet the requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient. The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades.
The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20 percent higher than conventional pumps.
The Walbro 525LPH pump can flow anywhere from 15-120psi (the bypass valve is set higher than Walbro's previous fuel pumps, which were around 85psi). Final fuel pressure is determined by your fuel pressure regulator. Please note that this is an aftermarket fuel pump, and some modifications may be required to get it to fit. The overal size is very similar to Walbro's previous generation GSS340/GSS341/GSS342, however the base is slightly enlarged as shown in the pictures.
Horsepower capabilities? No other intank pump on the market can come close. This pump can support over 800hp using larger than stock fuel lines. This pump can still support significantly more power than a Walbro 255LPH pump even when using stock fuel lines.
**NOTE: You will need to upgrade your Fuel Pump Wiring & Relay Setup for this fuel pump as it draws more power than your average fuel pump. We recommend a 10 Gauge Power Wire with 30 Amp Inline Fuse coming from the battery to a 30/40 Amp Relay with a 10 Gauge Ground Wire. We offer this Fuel Pump and other E85 compatible Walbro fuel pumps as a Package Deal with our JDT Racing Fuel Pump Rewire Kit. You can find them all here. JDT Fuel Pump Rewire Kits
