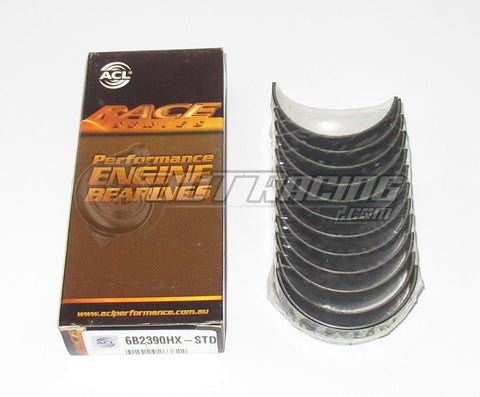

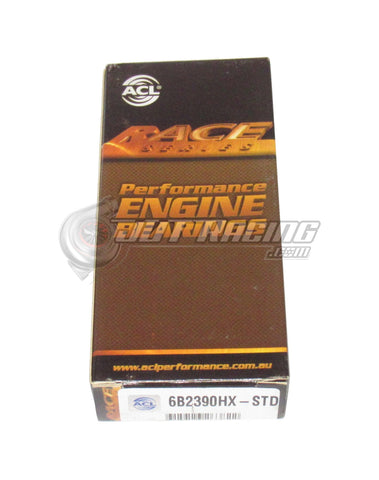

ACL RACE CONNECTING ROD BEARINGS #6B2390HX-STD

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Connecting Rod Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

* *High strength overlay plate* with reduced thickness for improved fatigue properties
* *Hardened steel backs* on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
* *Increased crush* for improved bearing retention
* *Elimination of flash plating* on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
* *Increased eccentricity* to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
* *Tight consistent wall tolerances* to help you maintain consistent clearances.
* *Enlarged ID chamfers* on bearing edges where required to accommodate large fillet radius on performance crankshafts.

**PLEASE NOTE: The ‘X’ signifies the set will give an extra .001” (.025mm) oil clearance on a standard size shaft when compared to the H-STD set. The wall size of these HX-STD bearings is .0005” (.013mm) thinner than the H-STD Bearings, in all other respects the HX set is identical to the H-STD set.

PART NUMBER: 6B2390HX-STD

COMPATIBLE WITH:

- Fits Nissan RB30/RB30ET 3.0L V6
- Fits Nissan VG30E 3.0L V6
- Fits Nissan VG30ET 3.0L V6
- Fits Nissan VG30i 3.0L V6
- Fits Nissan VG33E 3.3L V6
- Fits Nissan VG30DE 3.0L V6
- Fits Nissan VG30DETT 3.0L V6
