Description:

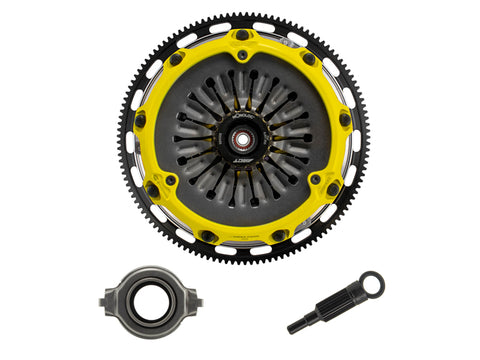

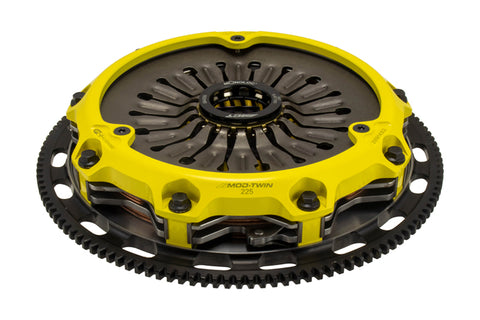

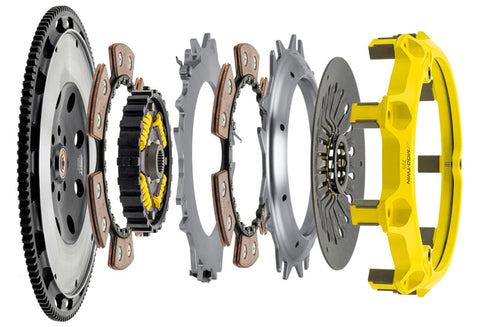

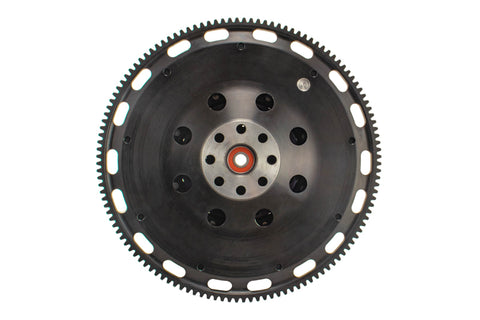

T1R-S05 Mod-Twin 225 HD Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2004-2014	Subaru	Impreza	WRX STI
2007,2011-2014	Subaru	Impreza	WRX STI Limited
2010	Subaru	Impreza	WRX STI Special Edition
2015-2021	Subaru	WRX STI	Base
2015	Subaru	WRX STI	Launch Edition
2015-2021	Subaru	WRX STI	Limited
2019	Subaru	WRX STI	S209
2016	Subaru	WRX STI	Series.HyperBlue
2018	Subaru	WRX STI	Type RA
